How to Install a Wood-Burning Fireplace Insert: A Comprehensive Guide

Convert Your Drafty Open Hearth Into a High-Efficiency Zone Heater

Installing a wood-burning fireplace insert is an excellent way to turn an inefficient, drafty masonry cavity into a highly effective room heater. While a traditional open brick fireplace allows up to 90% of your fire's heat to escape straight up the flue, a sealed, modern insert locks that thermal energy inside a heavy-duty combustion chamber, radiating clean warmth back into your living space.

The installation process centers entirely on capturing precise multi-point dimensions of your existing firebox, professionally sweeping away old creosote, and running a continuous, flexible stainless steel chimney liner from your roof straight down to the appliance's exhaust collar. This creates a secure, sealed system that maximizes draft velocity and prevents toxic smoke from leaking into your home.

Whether you are planning a complete DIY installation or coordinating your project with a certified professional installer, understanding the core layout rules and structural clearance guidelines ensures a safe, code-compliant retrofit. To map out your fuel options early, explore our premium selection of Wood Fireplace Inserts, compare clean-burning alternatives within our Gas Fireplace Inserts collections or review our definitive Fireplace Insert Buying Guide to lock down your sizing steps today.

Why should you choose a wood-burning fireplace insert to elevate your living space?

If you're a homeowner looking for a simple wood-burning heating solution to elevate your living space, you may want to consider a wood-burning fireplace insert. These inserts offer an efficient and stylish solution for transforming your traditional fireplace into an efficient heating source. One of the top benefits of buying a wood-burning fireplace insert is how quick and easy they are to install, however it's still important to know the basics when installing these units.

Planning your Wood Fireplace Insert Installation

Before purchasing a wood-burning insert, be sure to double-check that your existing fireplace is large enough to accommodate your new insert. Measure the height, depth, and width of your existing opening and make sure to consult the clearance requirements for the model you're purchasing to ensure compatibility.

Because these inserts burn wood, they will need both a supply of fresh air to aid in the combustion process and a way to expel smoke and carbon dioxide. The units we sell are generally designed to be used with manufacturer-specific ventilation piping that is run up through an existing chimney. Therefore, you should also consult the owner's manual and any relevant local codes regarding fireplace venting before choosing an insert for your home.


It's also a good idea to thoroughly clean your existing fireplace opening and chimney before installing your new wood-burning fireplace insert. To learn more about wood inserts before you make a decision about buying one, read our Wood-Burning Fireplace Insert FAQ.

Building your Wood Fireplace Insert

Once your chimney and masonry fireplace are clean and ready for installation, you can start your new fireplace project. Be sure to refer to the installation manual of your exact model when installing your wood fireplace insert to ensure safe use. Whether you've decided to hire a professional or you're taking on this project yourself, we've created an easy-to-follow 5-step guide to installing your wood-burning fireplace insert.

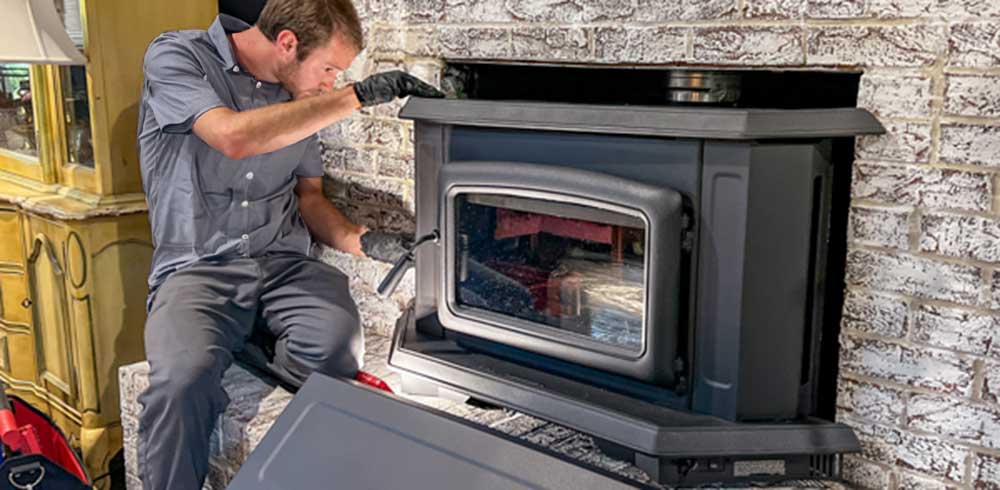

1. Place the insert slightly into the fireplace, leaving room to access the flue on top of the insert
2. Working from the roof, install a flexible stainless steel chimney liner down the chimney. Be sure to feed the insert down the chimney with the appliance connector down to attach to your insert
3. Attach the chimney liner to the insert's flue
4. Secure the top of the flue at the opening of your chimney and install a chimney cap on the end of the liner
5. Slide the insert into the fireplace, ensuring that it is level and center, then install the surround to block off the opening

Need More Assistance?

If you're having trouble installing your wood fireplace insert or simply have a question, please reach out to our product specialists for assistance. Although we can't install it for you, we are happy to help you during this process. If you need assistance navigating through our selection of wood fireplace inserts, read our Best Wood Fireplace Inserts blog to help you find the perfect unit for you.

What are the standard clearance requirements for a wood fireplace insert mantel?

National safety standards require all combustible wood mantels and decorative trim to sit at least 6 inches away from the fireplace opening. If your mantel projects outward more than 1.5 inches from the wall, you must add an extra inch of upward clearance for every additional fraction of an inch it sticks out. To guarantee absolute fire safety, you can add a defensive Napoleon Backer Plate to safely shield nearby wood framing from intense radiant heat.

Can you safely install a wood insert inside a zero-clearance prefabricated fireplace?

No, you should never install a heavy wood-burning insert into a prefabricated zero-clearance sheet metal fireplace unless the insert is explicitly tested and listed by the manufacturer for that exact prefab model. Standard factory-built metal boxes are not designed to handle the extreme heat concentration produced by a heavy cast-iron insert. If your prefab system cannot accept a wood upgrade, switching to versatile Electric Fireplace Inserts is the safest way to refresh the space without creating a house fire hazard.

How far must the noncombustible hearth extension extend in front of the door?

For certified Wood Fireplace Inserts, your noncombustible floor protection must extend at least 16 to 18 inches directly in front of the fuel-loading door and 8 inches beyond each side of the appliance opening. This noncombustible zone must consist of approved materials like stone, tile, or thick concrete to safely catch stray sparks or rolling embers when open doors are accessed during reloading.

Why does a wood fireplace insert require a perfectly sized chimney liner?

Your flexible stainless steel liner must match the exact diameter of the insert’s exhaust collar which is typically 6 inches. If you attempt to vent a modern insert into an oversized, unlined masonry chimney, the smoke will cool down too quickly as it rises, resulting in poor draft velocity, heavy room smoking, and rapid creosote buildup. Utilizing custom layout parts like a specialized Napoleon Low Clearance Flue Connector helps maintain a tight, uniform exhaust path through narrow damper paths.

What are the building code rules for structural chimney inspections before installation?

National safety codes dictate that your chimney must undergo a thorough professional inspection before any new heating appliance can be dropped into the cavity. A certified sweep will check for cracked flue liners, crumbling brick mortar, and missing structural seals that could allow carbon monoxide or stray sparks to seep into your home walls. For more preparation tips and safety checklists, review our comprehensive Wood-Burning Fireplace Insert FAQ before starting your build.

Complete Your Wood Fireplace Insert Upgrade Successfully

Transforming an outdated, drafty masonry hearth with a brand-new insert is an excellent investment that boosts both home comfort and monthly heating efficiency. By taking exact dimensions, preparing your existing brick cavity properly, and securing your stainless steel liner from top to bottom, you can look forward to a safe and incredibly cozy winter season. For more info on how to manage your project from start to finish, read through our detailed Fireplace Insert Buying Guide to confidently complete your home upgrade.

Shop Efficient Wood Fireplace Inserts at Fireplaces Direct

Ready to maximize your home's zone heating efficiency with a premium wood-burning setup? Explore our complete online inventory of high-performance Wood Fireplace Inserts today to find the perfect style for your space. Whether you need specialized installation accessories or want to compare alternative Gas Fireplace Inserts, our dedicated team of product experts is ready to help you every step of the way. Reach out to us online or call us today to get started!

 Frequently Asked Questions

1. Can I install a wood insert yourself or should I hire a professional?

While an experienced DIYer can handle running the liner and setting the unit, we strongly recommend hiring a certified professional installer. Wood-burning appliances operate at extremely high temperatures, and an inspection ensures everything complies with strict local building and safety codes.

2. How much space do I need around the insert for proper clearances?

Clearance requirements vary wildly depending on the brand and model you buy. You must consult the manufacturer specifications manual to verify the required distances to combustible mantels, side trim, and the hearth extension in front of the door.

3. What happens if my current fireplace opening is too small?

If your firebox does not meet the minimum height or depth requirements, you cannot safely force the unit to fit. In these scenarios, it is best to look at zero-clearance options or shift over to space-saving alternatives like our compact Electric Fireplace Inserts.

4. How often should a wood-burning insert chimney be cleaned?

You should have your entire venting system inspected and cleaned at least once a year by a certified chimney sweep. If you burn unseasoned resinous wood, creosote will build up faster, requiring more frequent maintenance to prevent blockages.

5. Do wood inserts need a power outlet to operate safely?

The combustion fire itself does not require electricity, but most modern wood inserts use an electric blower fan to push convective heat into the room. If your model features a fan, you will need a standard outlet nearby to power the motor.

6. Where can I find answers about wood insert maintenance and operations?

To review everyday operation rules, troubleshooting steps, and cleaning schedules, you can read through our detailed Wood-Burning Fireplace Insert FAQ page for expert guidance.

 Key Takeaways

• Verify Dimensions Early: Always double-check your firebox's height, back width, and depth against the clearance dimensions specified by the manufacturer before purchasing.

• Line the Entire Flue: Wood-burning inserts require a continuous, stainless steel flexible liner running from the top chimney cap all the way to the insert's collar to vent smoke safely.

• The Surround Seals Drafts: A metal surround panel must be fitted tightly against the masonry face to cover the remaining gaps and stop room heat from escaping.

• Clean Before Assembly: Creosote and old soot should be professionally swept from the existing chimney flue prior to setting up your new appliance to prevent safety hazards.
